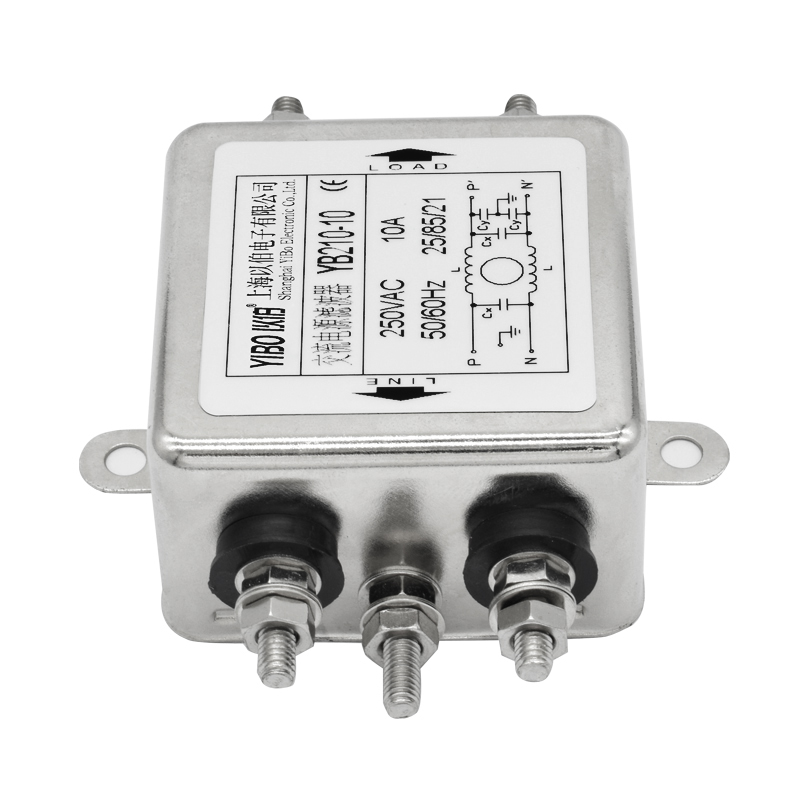

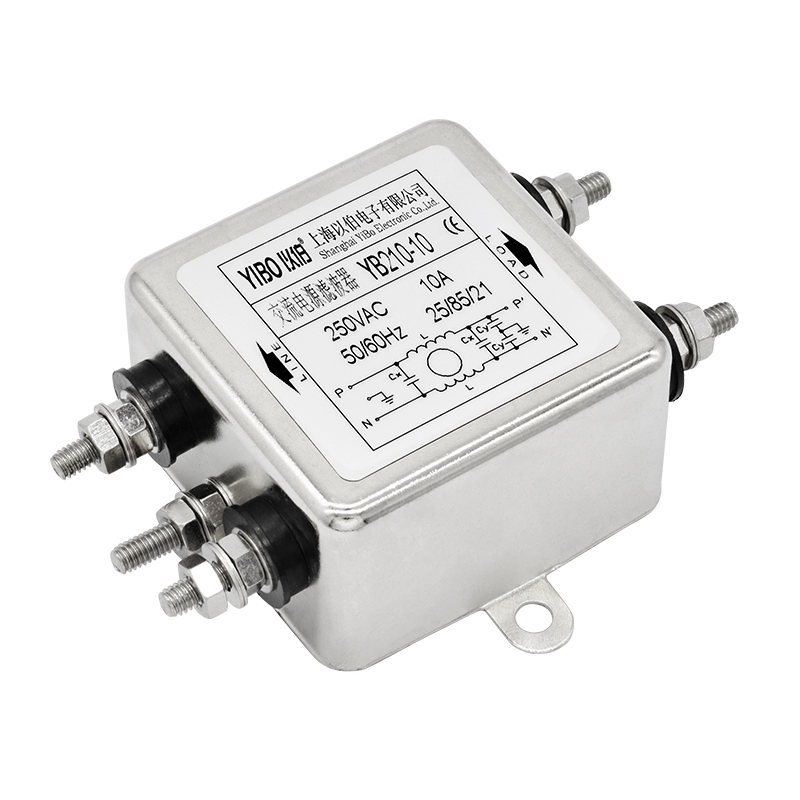

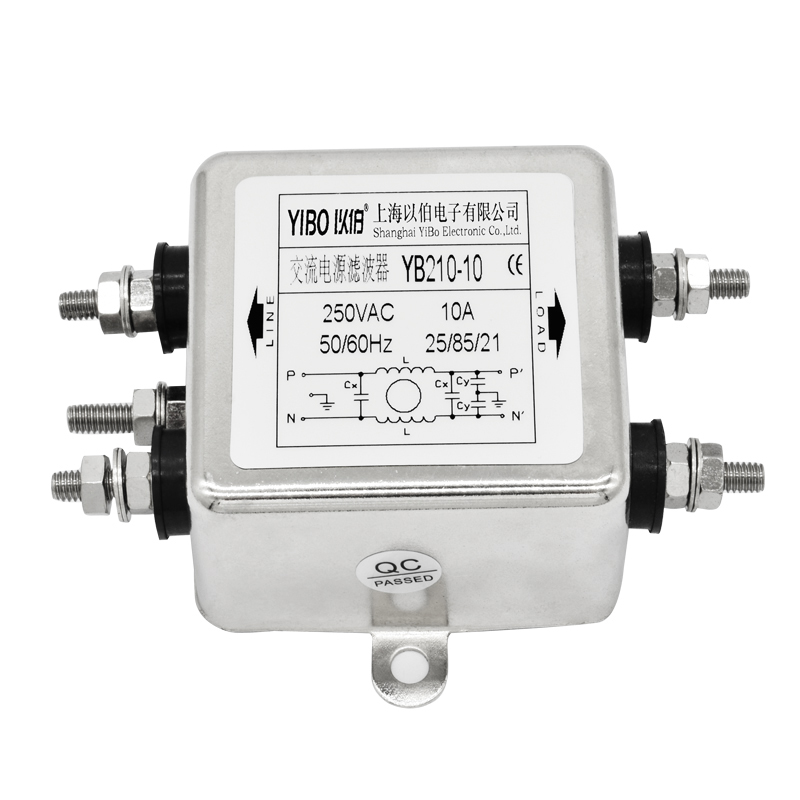

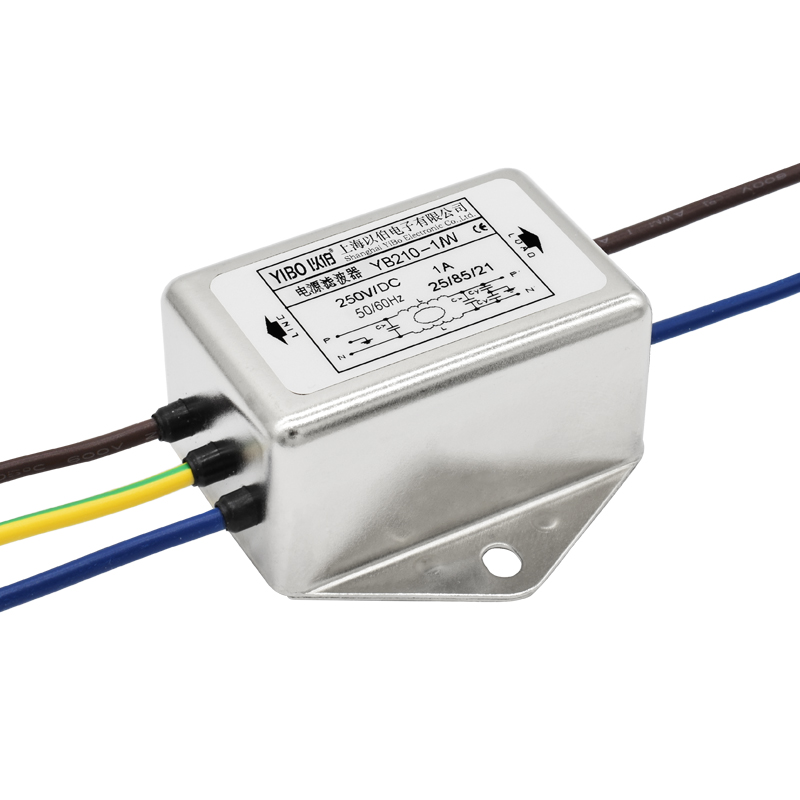

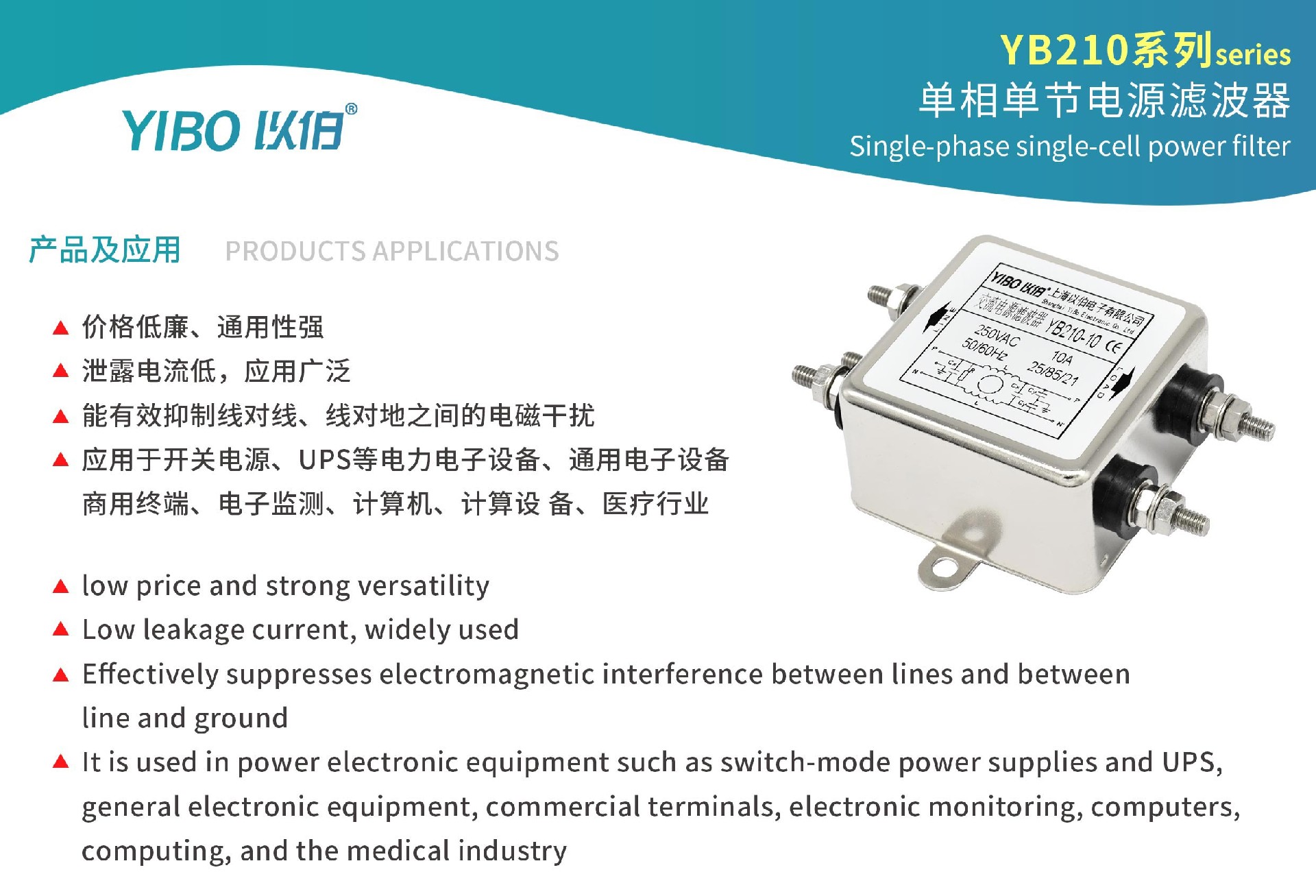

Product Overview
The YB210 Series single-stage single-phase EMI power line filters are designed to effectively suppress conducted electromagnetic interference between power lines and ground.
With a compact metal housing and stable electrical performance, YB210 filters are suitable for a wide range of industrial and commercial power electronics applications.
These filters help equipment comply with conducted emission requirements while maintaining reliable operation under rated current conditions.
Key Features
Chassis-mount design for easy installation
Suitable for continuous operation under rated current
Low leakage current design
Stable EMI attenuation across a wide frequency range
Effective suppression of line-to-ground and line-to-line interference
Compact and low-profile metal enclosure
Typical Applications
General-purpose industrial electronics
Medical and monitoring equipment
Commercial electronic terminals
Industrial automation and control equipment
UPS and backup power systems
Switched-mode power supplies (SMPS)

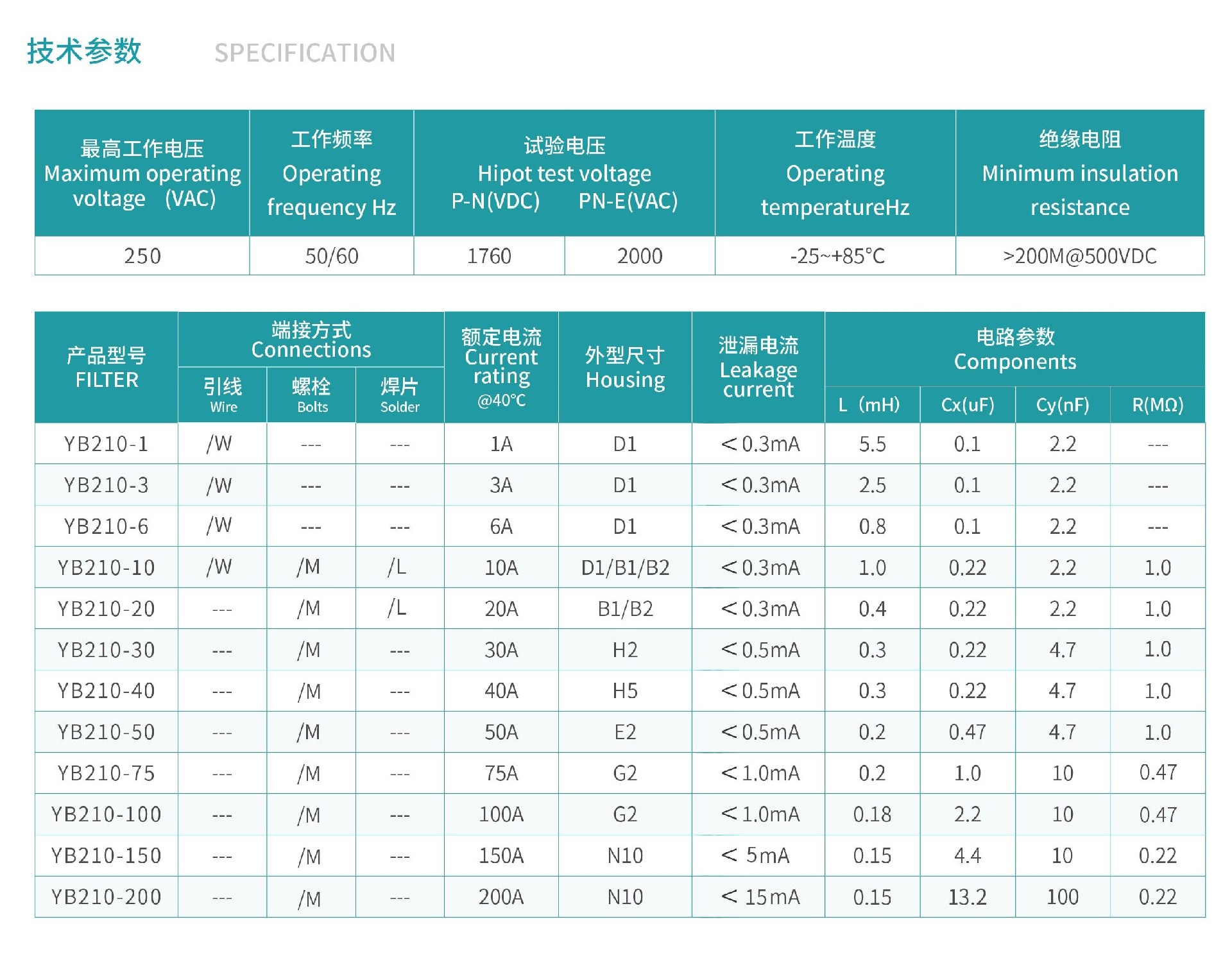

Technical Specifications
Maximum Operating Voltage 250 VAC
Operating Frequency 50 / 60 Hz
Rated Currents 1to200A@50°C
Hipot Test Voltage (L–N) 1760 VDC
Hipot Test Voltage (L–E) 2000VDC
Ambient Temperature –25 °C to +85 °C
Insulation Resistance ≥ 100 MΩ @ 500 VDC
Climatic category 25/85/21
Protection Category IP00
Model Coding
(YB 210 XX -ZZ)
ZZ Rated Current
XX: Connection Type
210 Filter Series
YB Enterprise Code
Filter Selection Table
Model No. Rated Current@40 °C Terminal Options Leakage current 250V/50Hz ≤0.3mA Mechanical Dimension Mounting Options Rated Voltage(V) Operating Frequency(Hz) 8Operating Frequency(Hz)
7 Rated Voltage(V)
6 Mounting Options
5 Mechanical Dimension
4 Leakage current 250V/50Hz ≤0.3mA
3 Terminal Options
2 Rated Current@40 °C
1Model No.
Electrical Schematic

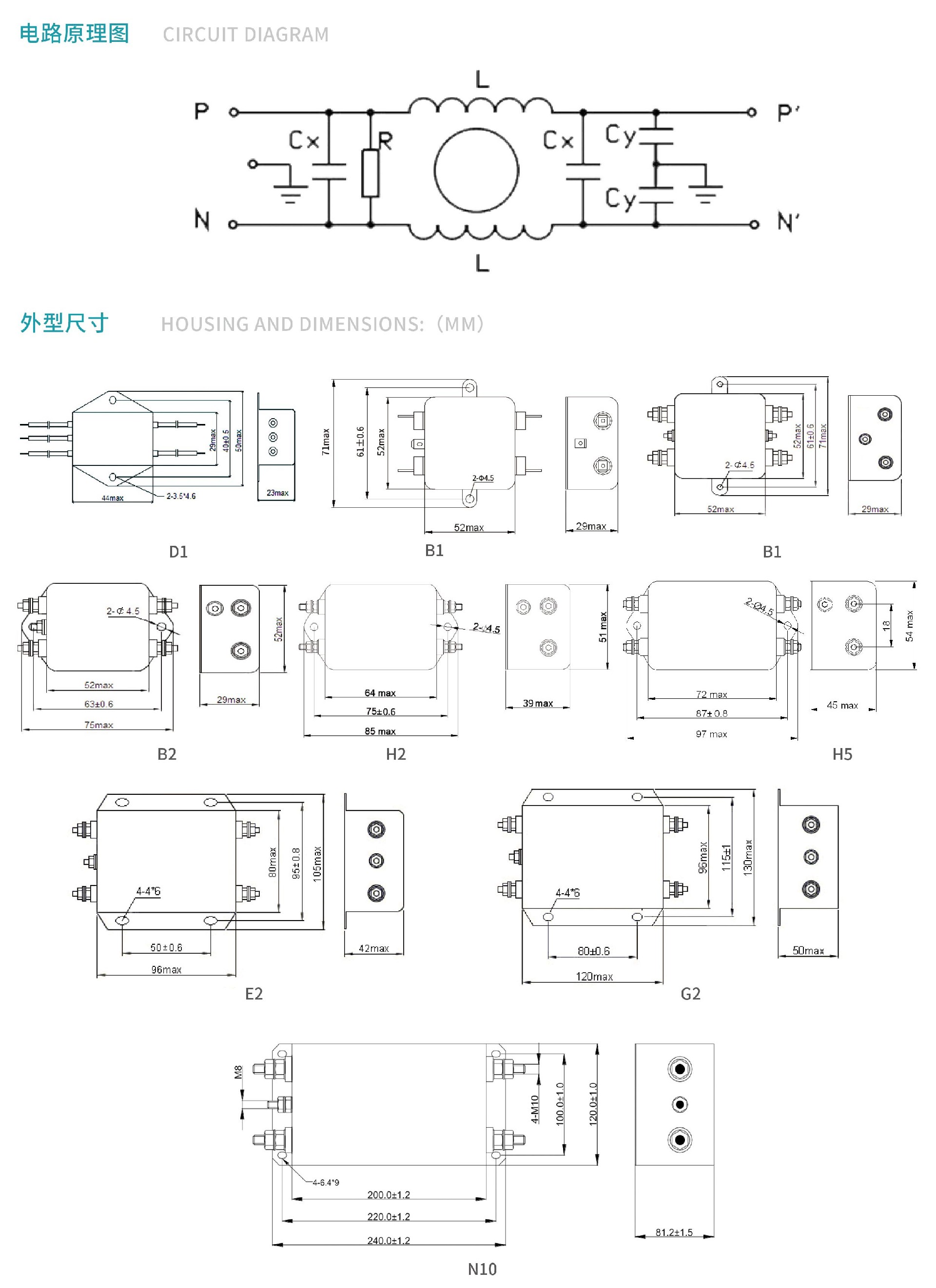

Mechanical Dimension(Unit: mm)

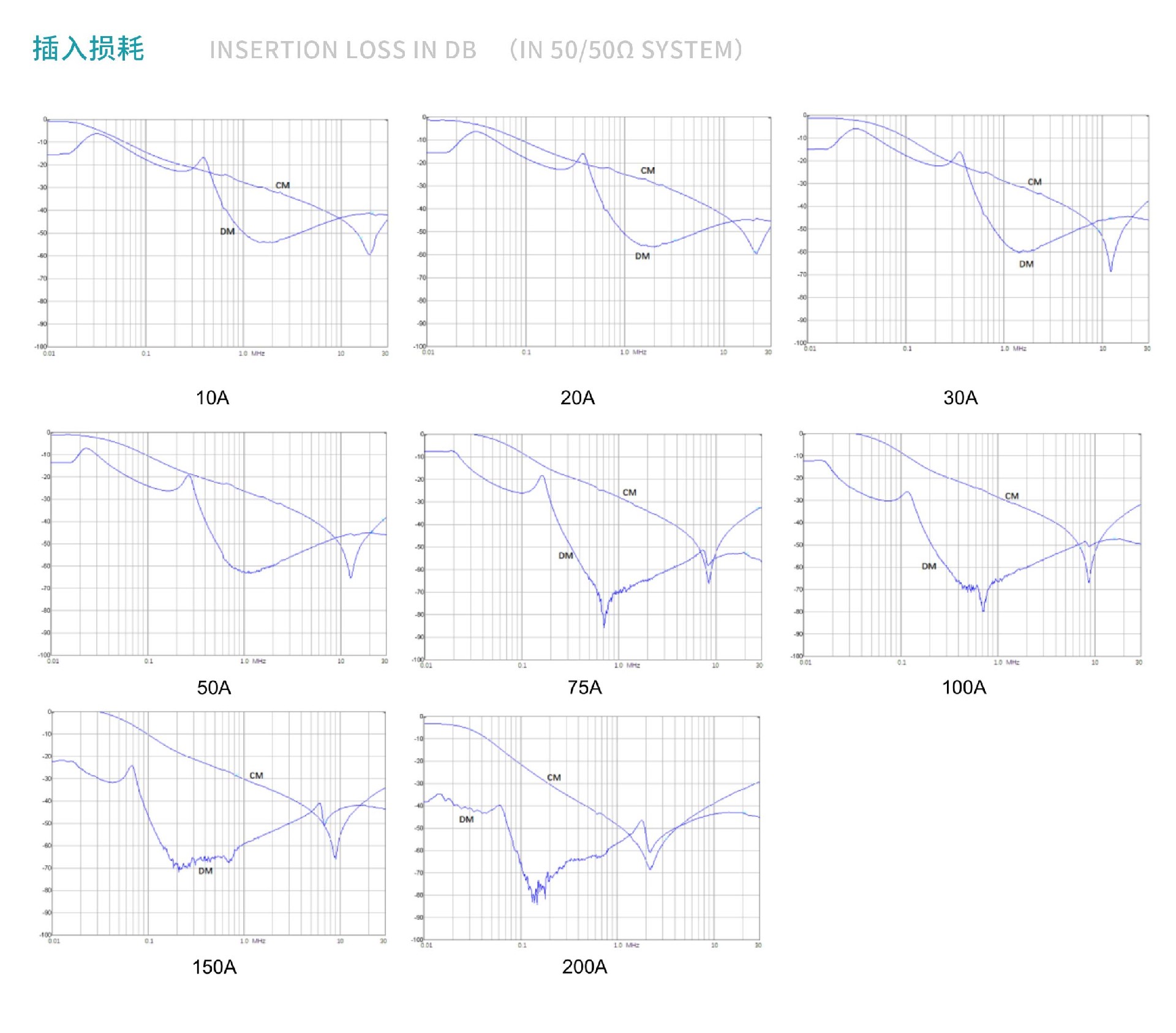

Insertion Loss dB(50 Ω / 50 Ω Ohm)
