Frequency Inverter Specialized Reactor

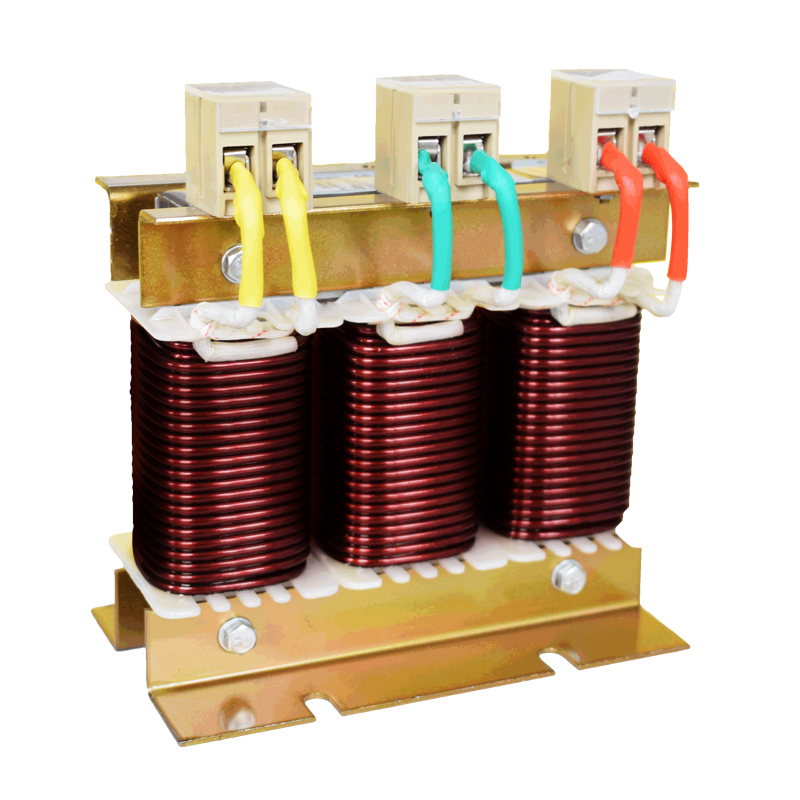

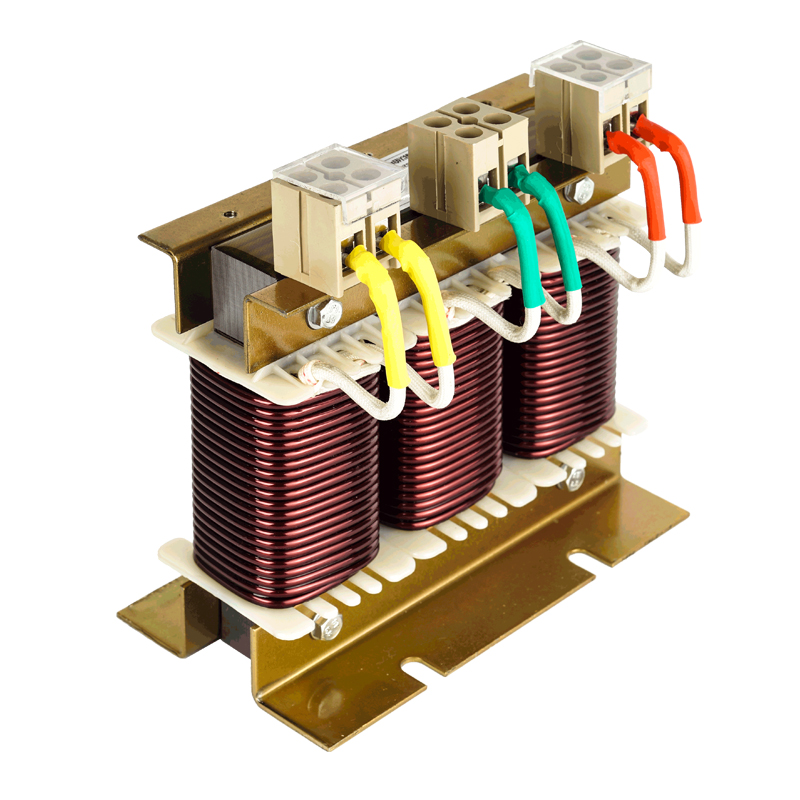

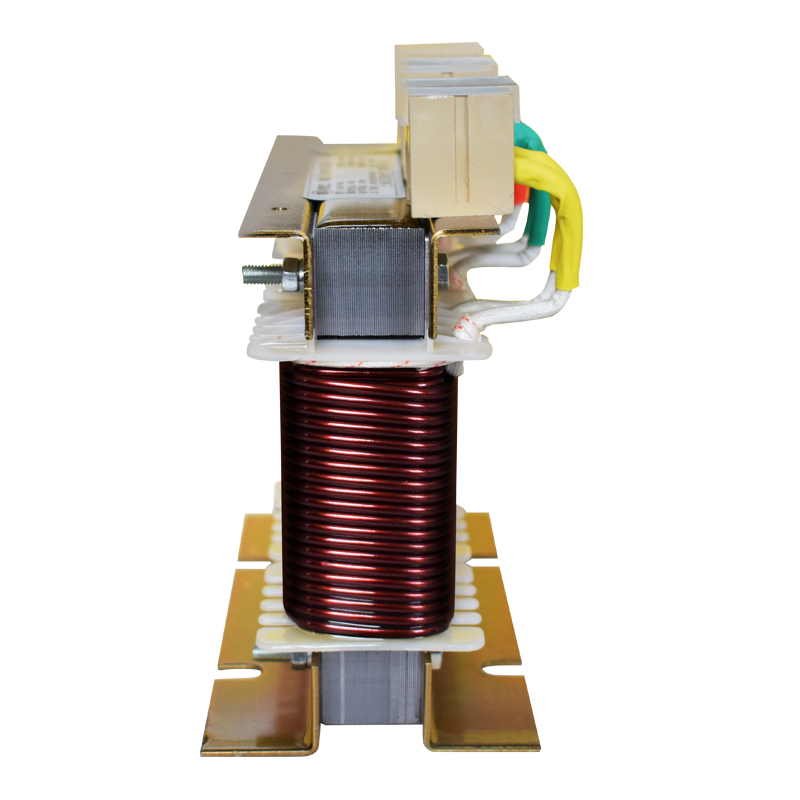

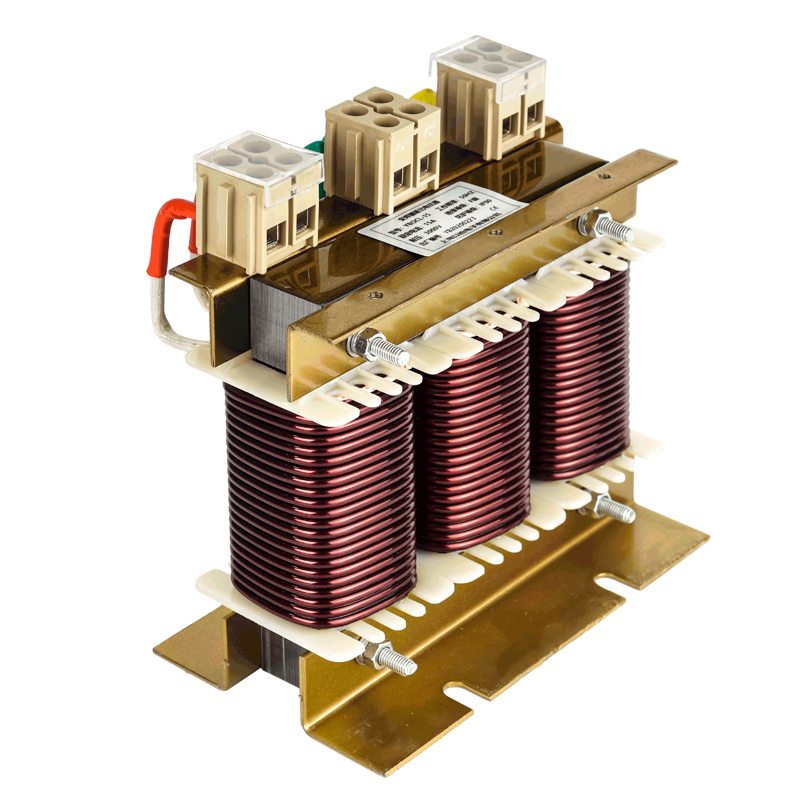

Low voltage shunt reactor

The shunt reactor adopts high silicon quality oriented silicon steel sheet. All insulating materials and electromagnetic conductors are above F grade. The manufacturing process has small loss, insulat

  • voltage
    :

    380VAC 50/60HZ

  • electric current
    :

    0.1~100kvar

  • apply to
    :

    Shunt reactors are used in dry resistive/inductive load cabinets for high power loads. By adjusting the capacity of inductive and resistive loads, it can accurately test the output power and load carr

  • Download PDF
    :

    Download PDF

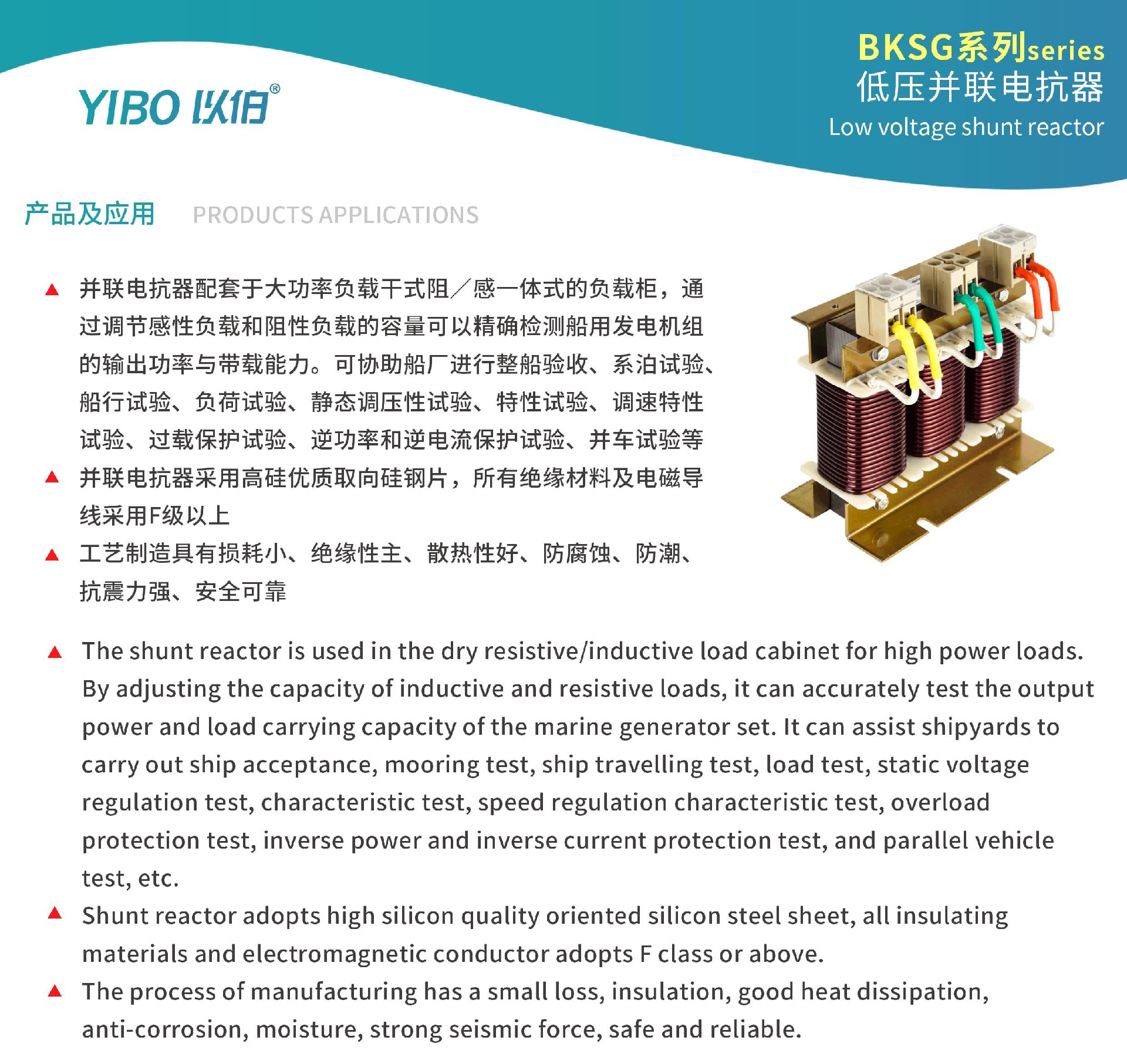

PRODUCTS APPLICATIONS

The shunt reactor is used in the dry resistive/inductive load cabinet for high power loads.By adjusting the capacity of inductive and resistive loads, it can accurately test the outputpower and load carrying capacity of the marine generator set. lt can assist shipyards tocarry out ship acceptance, mooring test, ship travelling test, load test, static voltageregulation test, characteristic test, speed regulation characteristic test, overloadprotection test, inverse power and inverse current protection test, and parallel vehicletest, etc.

Shunt reactor adopts high silicon quality oriented silicon steel sheet, all insulatingmaterials and electromagnetic conductor adopts F class or above.

The process of manufacturing has a small loss, insulation, good heat dissipation,anti-corrosion,moisture, strong seismic force, safe and reliable.
